Betafpv C03 FPV Micro Camera

Betafpv C03 FPV Micro Camera
Mã SP: Betafpv C03 FPV Micro Camera

320,000 VNĐ

- +

Tạ Duy Thái - 0936.336.128

Địa chỉ mua hàng

Thaituan-hobby (Còn hàng)

Thông tin sản phẩm

Đánh giá nhận xét

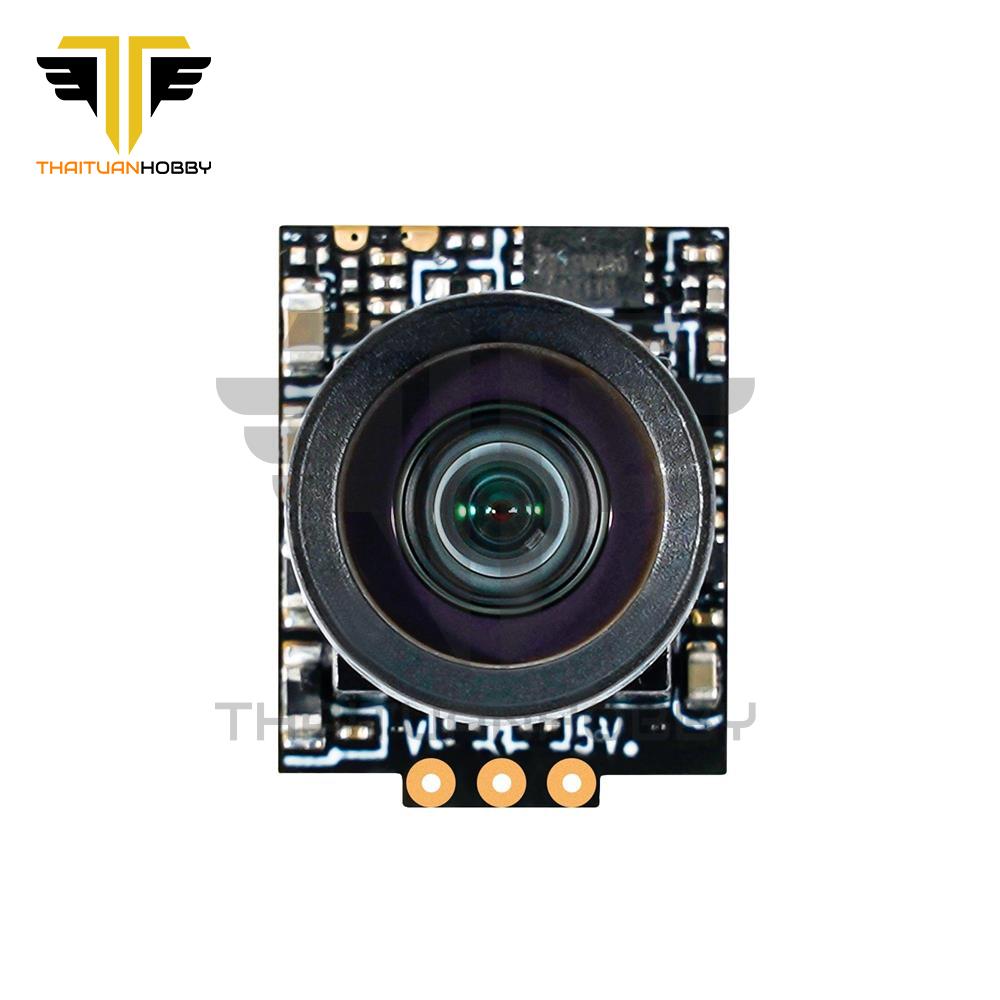

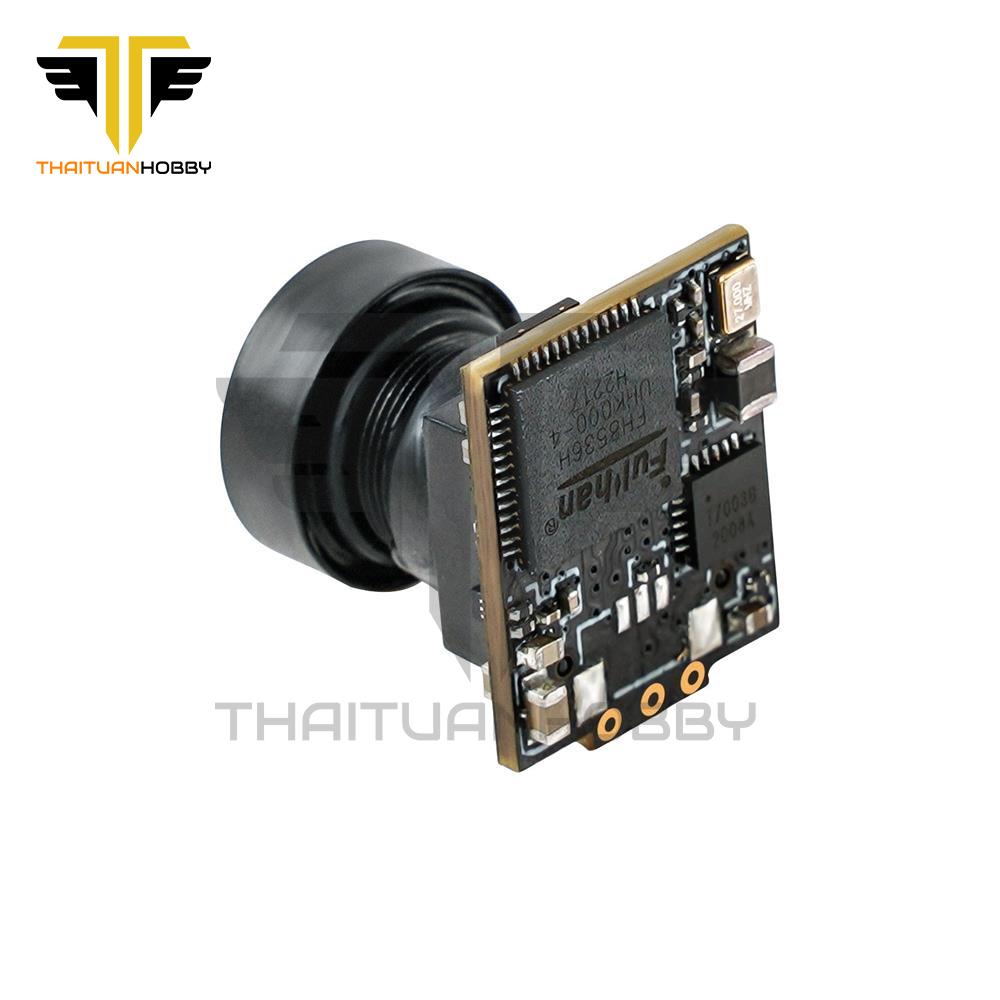

C03 is a lightweight 1.45g and 1200TVL resolution camera that has been designed to provide superb performance for micro FPV quadcopters. It has a 2.1mm lens that gives a 160° field of view, operating in 4:3 image ratios, and features a 1/3'' CMOS sensor for clear and brilliant images. It is supplied with a BETAFPV Micro Canopy, which perfectly fits for C03 camera, making it more convenient for pilots to build quads.

C03 Micro Camera

Bullet Points

Comes with BETAFPV Micro Canopy, and 20°/30° camera mounts, which fully match the C03 camera. This bundle allows pilots to build whoop drones easily.
Made of high-quality ABS material and covered by BETAFPV Micro Canopy, the C03 FPV Micro Camera is durable enough for use.
Miniature, and lightweight design, weighing only 1.45g. Completely suitable for M03 5.8G VTX on micro whoop drone.
1200TVL resolution and 1/3" CMOS sensor ensure a high-quality and clear image
Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition
2.1mm lens, FOV 160° beyond the wide angle for recording more wide and beautiful scenes.

Specifications

Item: C03 FPV Micro Camera
Image Sensor: 1/3" CMOS Sensor
Horizontal: 1200TVL with Global WDR
Signal System: NTSC (4:3)
Lens: 2.1mm(M7) FOV 160°
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current: 100mA@5V / 120mA@3.3V
Housing Material: ABS
Dimensions: 11*15*14mm
Net weight: 1.45g

Diagram

Plug-N-Play Connector

C03 FPV Micro Camera features a JST-0.8 connector, a special design in plug-and-play, that makes it easy to install without soldering. Suitable for Meteor series drones, BETAFPV F4 1S 5A AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.

Recommend Parts

Canopy: BETAFPV Canopy for Micro Camera 2022
VTX: BETAFPV M03 5.8G VTX
FC: BETAFPV F4 1S 5A AIO FC, NBD BeeBrain flight controllers
Drones: Meteor65/75 drones, or other micro whoop drones in the market.

Package

1 * C03 FPV Micro Camera
1 * BETAFPV Micro Canopy
1 * 20° Lens Camera Mount for C02
1 * 20° Lens Camera Mount for C03
1 * 30° Lens Camera Mount for C03
3 * Decorative Parts
4 * M1.4*5 Screws (Sliver)
6 * M1.4*4 Screws (Black)
