Betafpv Toothpick F722 2-6S Aio Brushless Flight Controller 35A(Blheli

Betafpv Toothpick F722 2-6S Aio Brushless Flight Controller 35A(Blheli_S)
Mã SP: Betafpv Toothpick F722 2-6S Aio Brushless Flight Controller 35A(Blheli_S)

1,955,000 VNĐ

- +

0936.336.128

Địa chỉ mua hàng

Thông tin sản phẩm

Đánh giá nhận xét

F722 2-6S AIO 35A FC is a very reliable FC that is made to meet your advanced FPV needs. Comes with an F722 chip and BLHeli_S ESC firmware, this board provides a better performance capability and higher calculation speed, which brings pilots a more stable and smoother flight. What's more, F722 AIO 35A FC has specially added a 6-pin connector for DJI Digital VTX, just plug & play, less solder work needed, super easy to install. It also can handle up to 6S of input voltage and push your FPV racer to the max. We highly recommend it for 4-5'' Toothpick quad, such as X-Knight 5'' Toothpick Quadcopter.

Bullet Point

Compare with F4 AIO 35A FC, F722 FC's firmware is upgraded from F411 to F722, providing a better performance capability and higher calculation speed, which brings pilots a more stable and smoother flight.
F722 AIO 35A FC has specially added a 6-pin connector for DJI Digital VTX, just plug & play, less solder work needed, perfect for the pilots who enjoy the DJI Digital VTX system.
6 full UARTs are available on this board. With plenty of UARTS, Pilots could have more options for external parts like VTX, GPS, Receiver, and other components.
Come with a built-in 10V BEC circuit, this board can offer the external components a more stable voltage and current, which brings pilots a better flight experience.
It can handle 35A continuous current(40A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.
With the 6S battery and this F722 35A AIO toothpick FC, the drone will break through the limit of the power of the toothpick drone, exploring more possibilities in 4-5'' drones.

Specification of FC

Item: F722 35A AIO FC(BLHeli_S)
Weight: 7.06g
CPU: STM32F722RET6
Six-Axis: MPU6000 (SPI connection)
Mounting hole size: 26mm * 26mm
Firmware version: betaflight_4.2.x_BETAFPVF722
OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
Support programmable LED like WS2812 etc
Built-in current sensor

Specification of ESC

Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/Flysky Receiver/DSMX Receiver/TBS Crossfire Receiver (requires external connection)
Input voltage: 2S-6S Lipo
Continuous current: 35A
Peak current: 40A
ESC firmware: BLHeli_S
Indicators: 2 indicators: receiver indicator (green)/Flight control power indicator (red)
Capacitance: CS|5*10*13mm|470μF|35V
Connecter: 80mm 14AWG silicone cable with XT60
Recommended motors: 14XX series, 15XX series, 16XX series, 18XX series, 20XX series

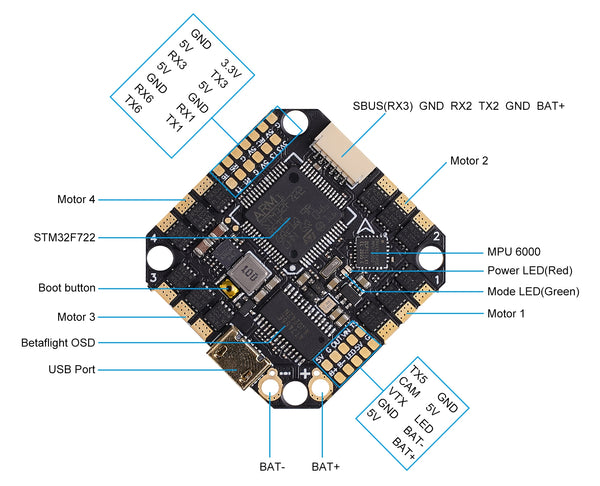

Diagram for F722 35A AIO FC

Status LED

There are 2 LEDs on the bottom of the board to indicate the status, including the Receiver LED ( Green) and FC Power LED ( Red ).

LED	Status	Description
Mode LED (Green)	Solid	Horizon Mode/ Angle Mode
Mode LED (Green)	Extinguished	Acro Mode
Power LED (Red)	Solid	Power on

How to Connect the External Rx to the F722 FC

Here is the description of Rx and UARTs.

Recommended Parts

BNF: highly recommend for TWIG ET5 and X-Knight 5'' Toothpick Quad
Battery: 550mAh 6S 75C battery, 450mAh 4S battery, 4S 1000mAh Battery
VTX: M02 25-350mW 5.8G VTX, A02 25-800mW 5.8G VTX
Motor: 1805 1550KV brushless motor, 2004 Brushless Motors, 1606 Brushless Motor, 1506 Brushless Motor
Compatible Propellers: Gemfan 5125 3-Blade props and Gemfan 5020 props
Frame: 4-5 inch Frame, highly recommend for TWIG ET5 5'' Toothpick Frame, X-Knight Carbon Fiber 5'' V2 Frame Kit and X-knight 5'' frame

Package

1 * Toothpick F722 35A AIO 2-6S brushless flight controller
1 * Cable Pigtail (XT60U)
1 * Capacitance
1 * 6-Pin Connector for DJI Digital VTX
4 * M2x10mm Screws
8 * M2 Nuts
